WELDGOD Engineering / WG-001
Build a professional 2500 × 1500 mm welding fixture table from complete engineering drawings, DXF cutting files and STEP 3D models.
Professional fabrication drawings, 3D models and manufacturing files for a modular welding table engineered for real workshop use.
No reviews yet.
DIGITAL ENGINEERING PRODUCT — NO PHYSICAL ITEM WILL BE SHIPPED
Plans from $20
S $20M $40Premium $70
01 / Complete assembly
A full structural view of the WG-001 platform, engineered around rigidity, accessibility and practical workshop fabrication.
02 / Work surface

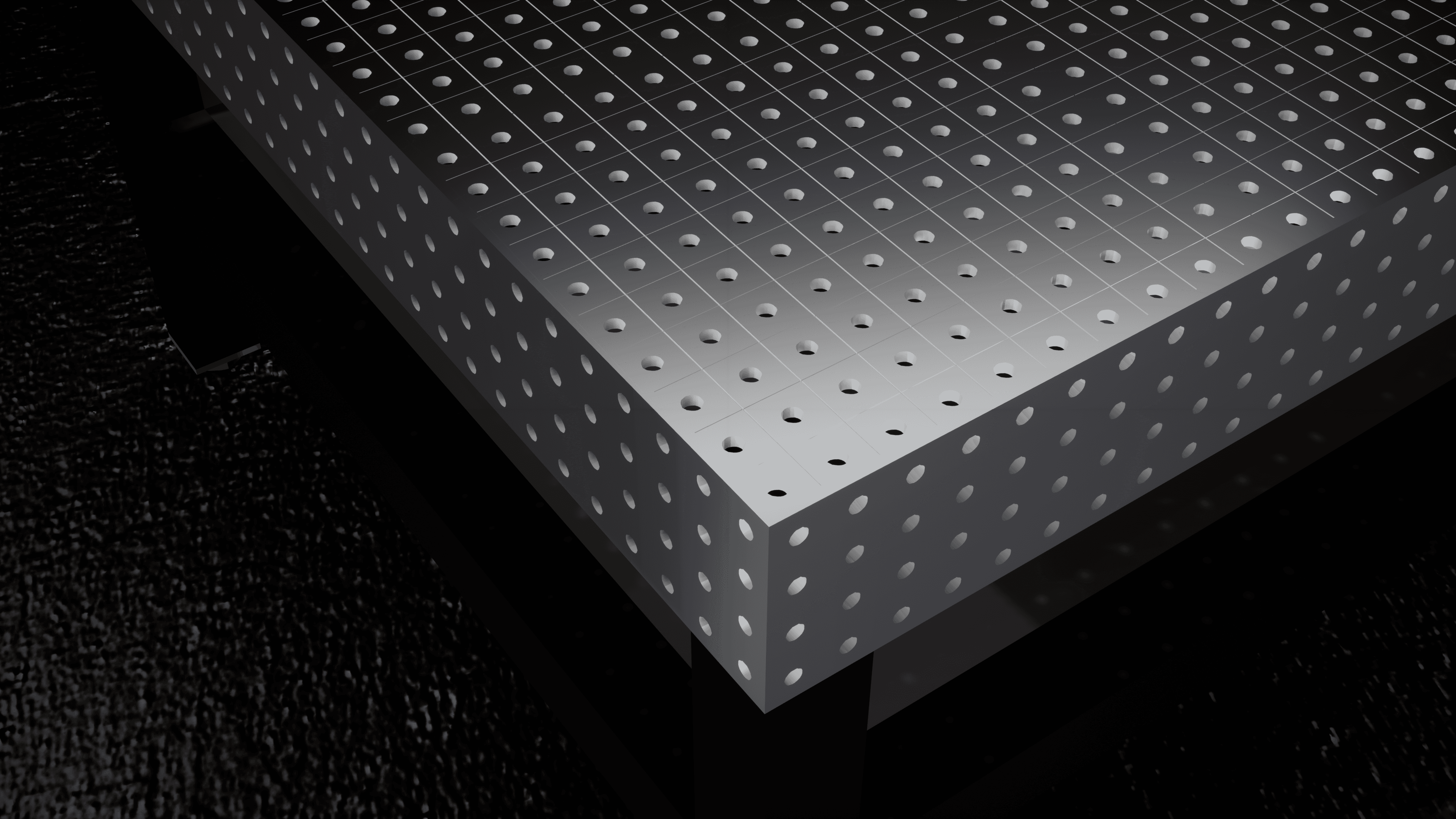

The perforated tabletop and reference grid are designed to support repeatable positioning, clamping and fabrication workflows.
03 / Engineered details

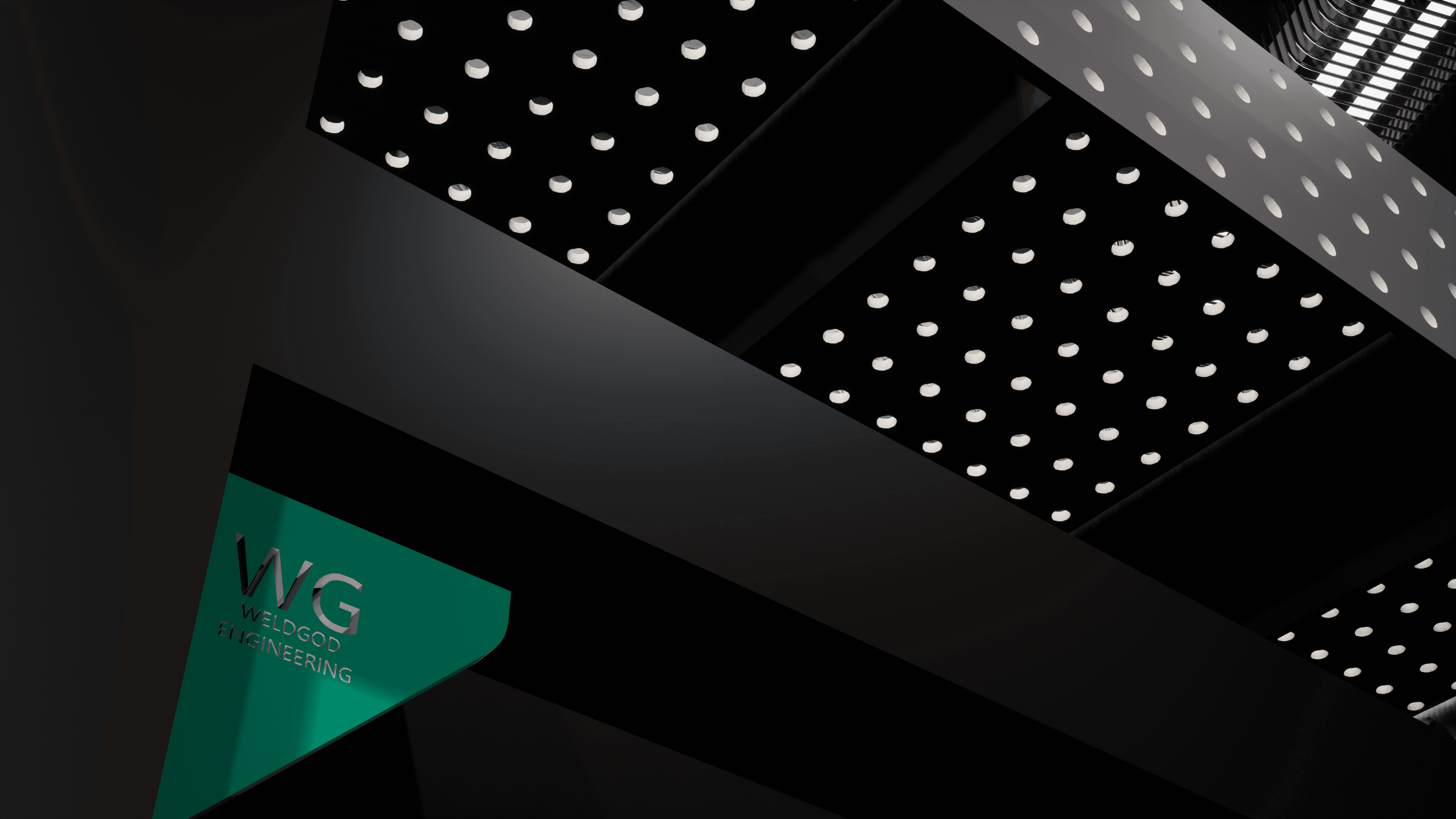

Structural details, reinforced junctions and branded components give the table a purposeful industrial identity while supporting the overall frame architecture.
04 / Structural frame

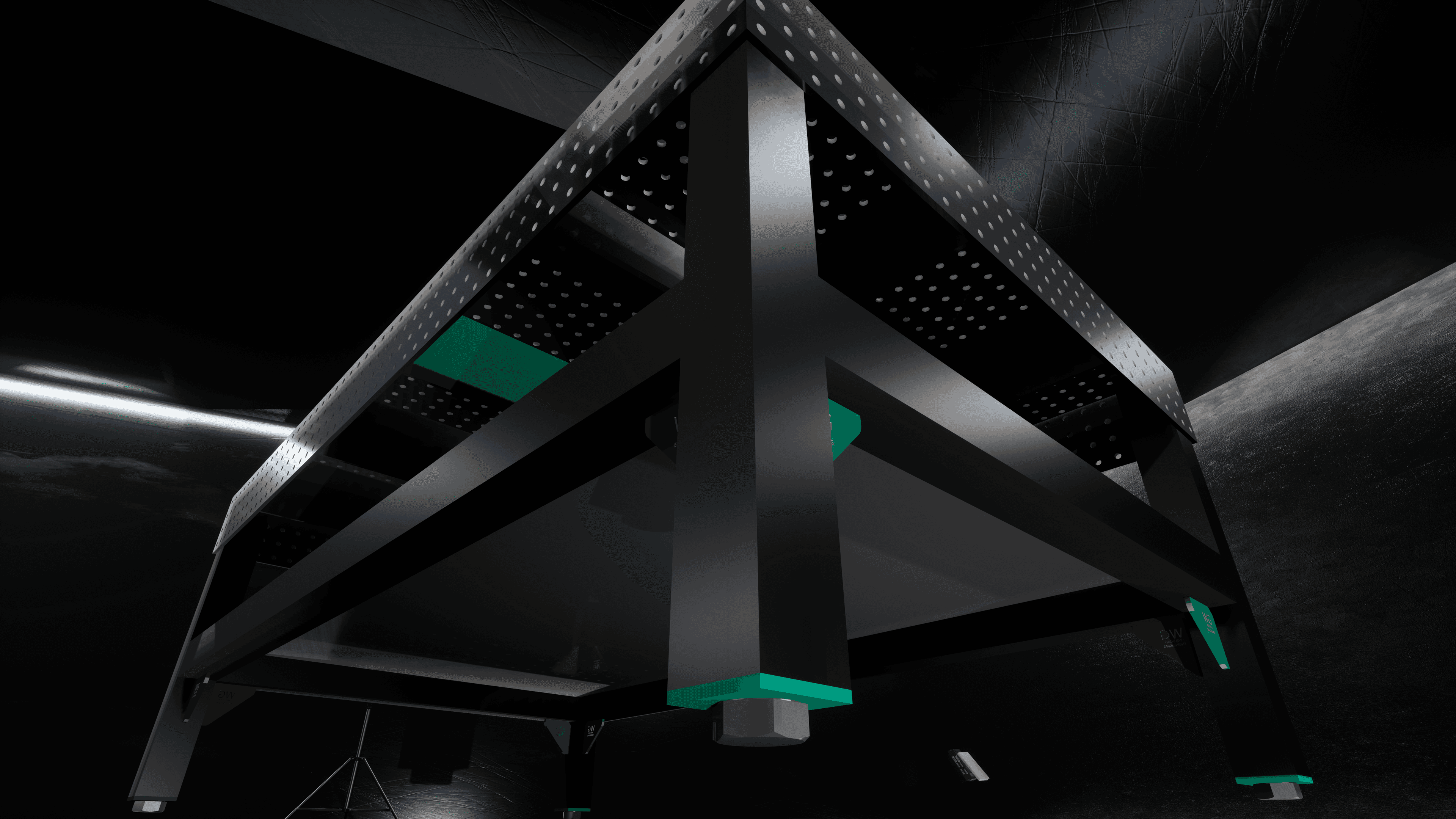

The underframe, lower structure and support geometry are designed as part of one complete fabrication system rather than as separate visual elements.
05 / Technical geometry

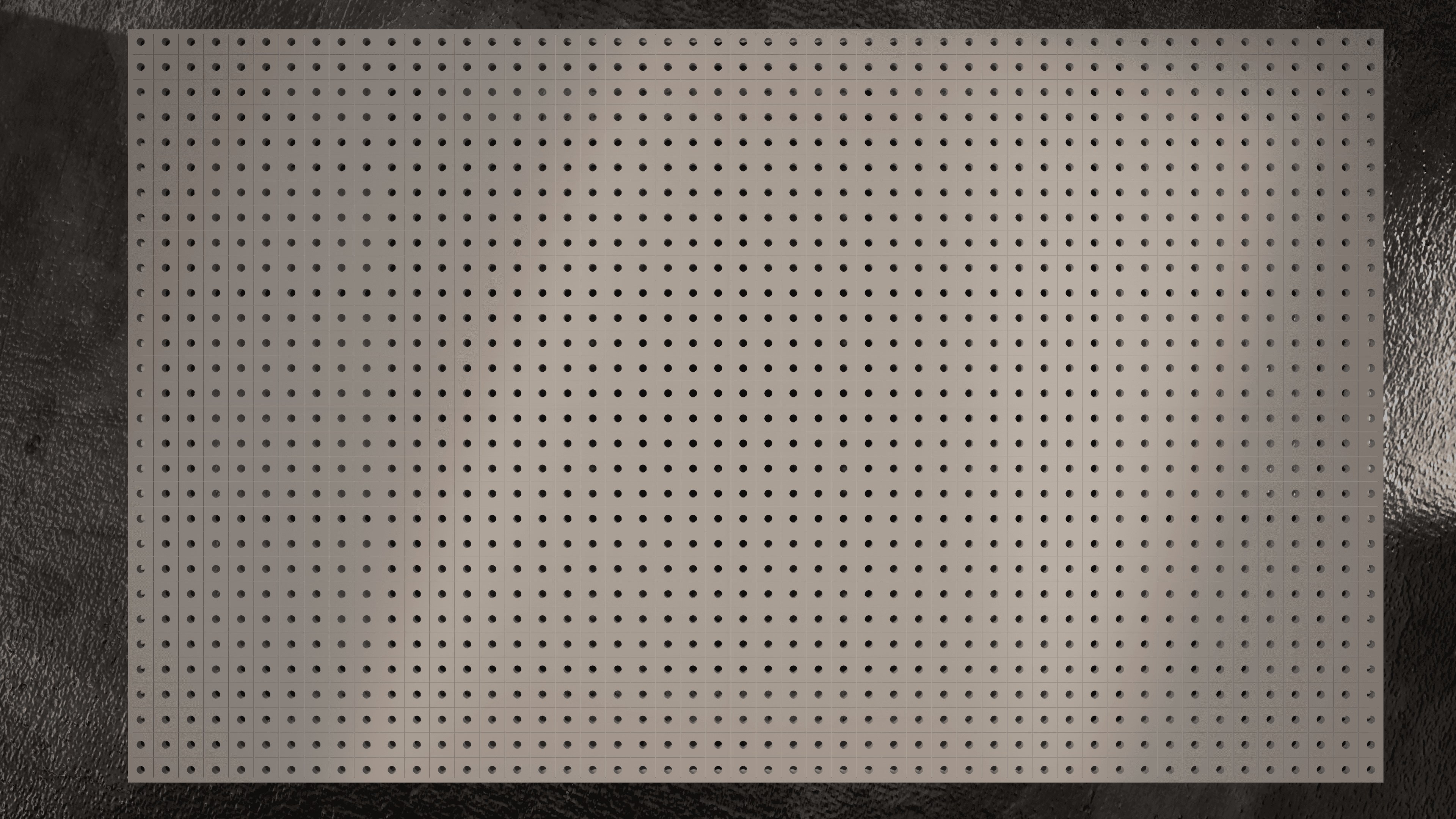

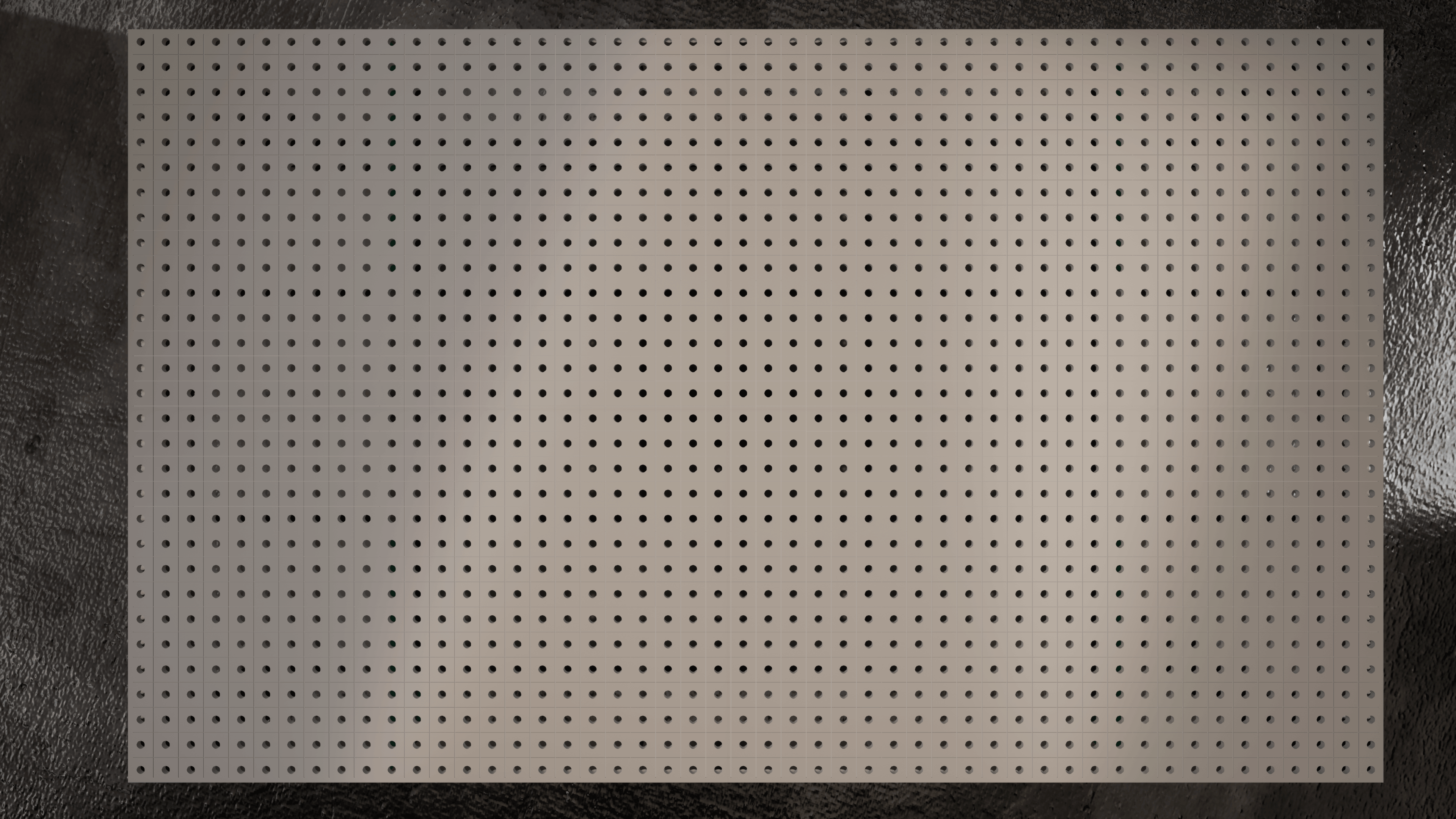

The top view reveals the full working geometry, hole distribution and reference structure at a glance.
06 / Industrial detail

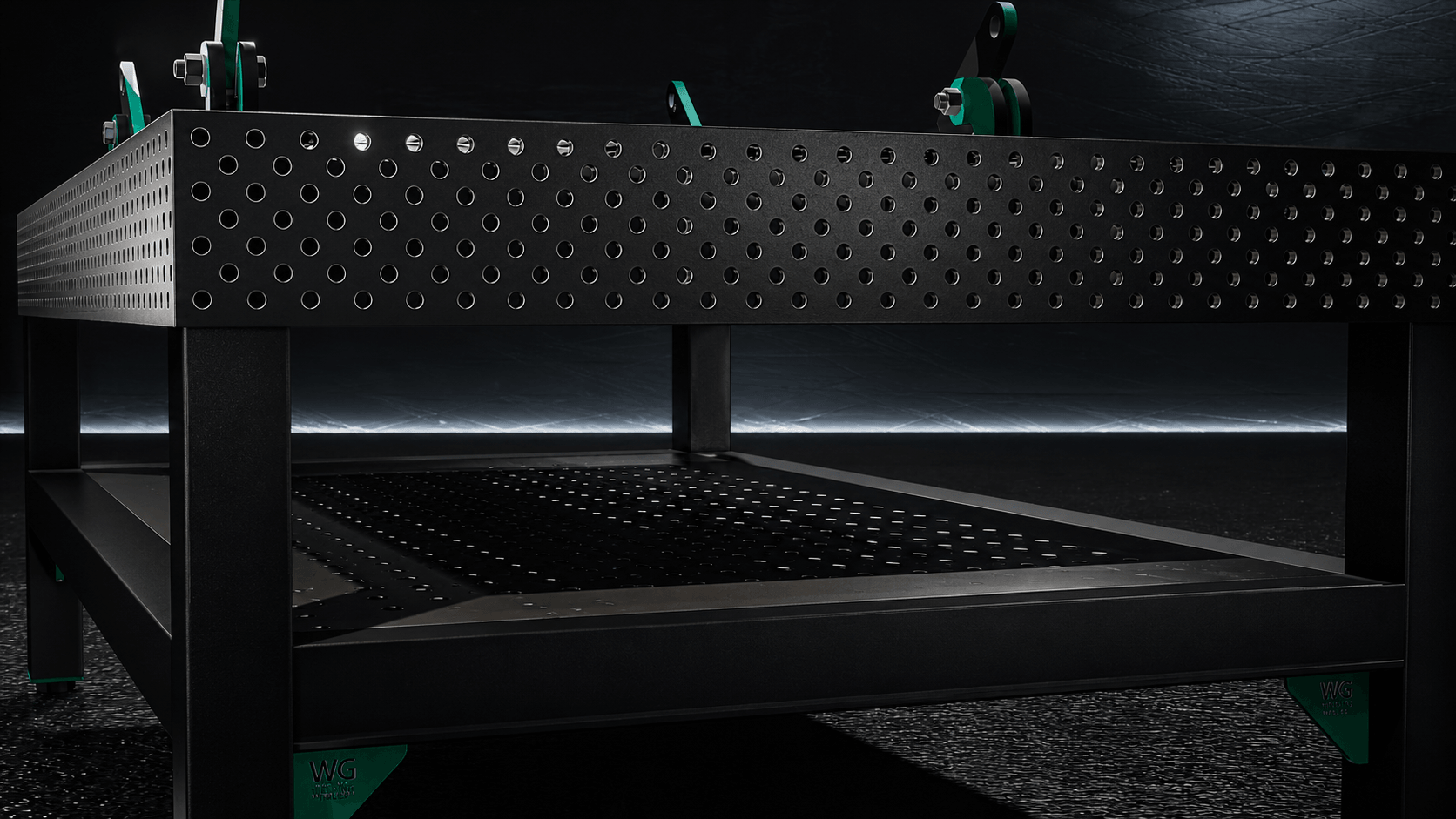

A detailed view of the WG-001 modular welding table side plate and frame construction.
WG-001 / Engineering documentation
WG-001 is a complete set of professional welding table plans designed for fabricators, welders and metalworking workshops.
The table features a 2500 × 1500 mm work surface manufactured from 10 mm steel plate, with Ø16 mm fixture holes arranged on a precise 50 × 50 mm grid.
Unlike basic DIY welding table plans, WG-001 includes detailed manufacturing documentation created for real fabrication. Depending on the selected package, the project includes PDF technical drawings, DXF cutting files, STEP 3D models and editable CAD source files.
The DXF files are prepared for CNC manufacturing workflows such as laser and plasma cutting, allowing the main table components to be produced directly from the supplied geometry.
The PDF drawings provide the dimensions and fabrication information required for assembly, while the STEP files allow the complete welding table design to be inspected in compatible 3D CAD software before fabrication.
WG-001 is designed as a rigid welding fixture table for fabrication, positioning, clamping and assembly work. Its perforated work surface provides repeatable reference points for fixtures and welding clamps.
Whether you are building a welding table for your own workshop or manufacturing equipment commercially, WG-001 provides a complete engineering foundation instead of a simplified sketch or basic blueprint.
WG-001 / Development focus
Designed to support accurate positioning and repeatable fabrication workflows.
A heavy-duty structure focused on stability during professional workshop use.
Prepared for flexible clamping, positioning and future accessory systems.
Engineered for long-term use in demanding fabrication environments.
Technical specifications
Verified product details for the WG-001 Welding Table Plans digital engineering package.
Product structure
Modular system
In development
Planned for future modular expansion.
In development
Planned for future modular expansion.
In development
Planned for future modular expansion.
In development
Planned for future modular expansion.
In development
Planned for future modular expansion.
In development
Planned for future modular expansion.
WG-001 packages
Choose a package to continue directly to BlackSea checkout.
Package / S
$20
Essential fabrication files for the WG-001 table.
Package / M
$40
Expanded fabrication files with assembly and part models.
Package / Premium
$70
Complete fabrication and editable source-file package.
Digital product. Purchase subject to License, Terms of Sale, Refund Policy.
Direct checkout
Complete your purchase through the selected BlackSea checkout link. Delivery follows payment confirmation.
Interactive 3D model
Inspect the table design directly in your browser.
Drag to rotate / Scroll to zoom
Loading 3D model
Manual delivery
01
02
03
Use the selected BlackSea checkout link to complete your purchase.
WG-001 information
Clear product information for the WG-001 Welding Table Plans digital engineering package.
S includes PDF Drawings and DXF Files. M includes everything in S, plus STEP Assembly and STEP Individual Parts. Premium includes everything in M, plus editable A3D, M3D, CDW, and SPW source files.
No. WG-001 is a digital engineering product. No physical welding table is shipped. The customer receives the digital files included in the selected package.
After payment confirmation, the selected digital package is delivered directly by email.
The documented table configuration has a 2500 × 1500 mm working surface, 10 mm plate thickness, Ø16 mm holes, and a 50 × 50 mm hole grid.
Yes. The product page includes product renders and an interactive 3D model for visual inspection of the design.
Customer reviews
Read approved feedback from customers who have worked with this engineering package.
No reviews yet.
No approved reviews yet.
Customer feedback will appear here after WELDGOD moderation.
